MIG Wire Mild Steel
|
|
|
|
SM-70 AWS A5.18 ER70S-6
|
|
|
|
Applications
|
|
|
MIG welding of mild & low alloy steels in all positions. Used for general fabrication, structural materials and maintenance.
|
|
|
Usage Specifications
|
|
|
SM-70 is a copper coated solid wire designed for all position welding by short-circuiting type transfer. As the deposition efficiency is high and penetration is deep, highly efficient welding can be performed. It is supplied on 5 & 15 kg Precision Layer Wound Spools, or in 250 - 300 kg Tangle free Max-Pac’s.
|
|
|

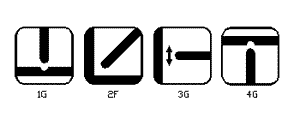

Welding Position Welding Current Shielding Gas
|
 |
|
|
Use welding grade CO2 / Argon + 15 - 25 % Flow rate of shielding gas should be approximately 25 L / Min.
|
|
|
DC+
|
|
|
|
|
|
|
Typical Chemical Composition Of All-Weld Metal ( % )
|
|
|
C
|
Si
|
Mn
|
P
|
S
|
Cu
|
|
Typical
|
0.06
|
0.84
|
1.51
|
0.014
|
0.013
|
0.12
|
|
Minimum
|
0.06
|
0.80
|
1.40
|
+ / - 0.025
|
+ / - 0.035
|
+ / - 0.50
|
|
Maximum
|
0.15
|
1.15
|
1.85
|
|
|
|
Typical Mechanical Properties of All-Weld Metal
|
|
Y.S N/mm sq
|
T.S N/mm sq
|
E.L ( % )
|
Temp 'C
|
Impact Test-J cvn
|
|
430
|
540
|
28
|
-29
|
70
|
|
|
|
Welding Data & Available Spool Size. With A.W.E Part Number
|
|
Wire Diameter
|
Current Range
|
1 kg Spool
|
5 kg Spool
|
15 kg Spool
|
Max-Pac
|
|
0.6 mm
|
30 ~ 100 amp
|
*M606R1
|
*M606R5
|
*M606R15
|
-
|
|
0.8 mm
|
30 ~ 180 amp
|
*M608R1
|
SM70085
|
SM7008
|
-
|
|
0.9 mm
|
50 ~ 220 amp
|
-
|
SM70095
|
SM7009
|
MP7009
|
|
1.0 mm
|
80 ~ 300 amp
|
-
|
-
|
SM7010
|
SM7010BP
|
|
1.2 mm
|
100 ~ 350 amp
|
-
|
-
|
SM7012
|
MP7012
|
|
( * = Random wound spools of wire. - = Not available )
|
|
|
|
|
|
|
|
Product specifications subject to change without notice
|
|
|
|
