FIAC AIR COMPRESSORS
|
|
|

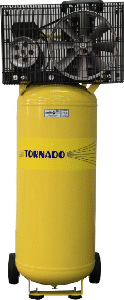

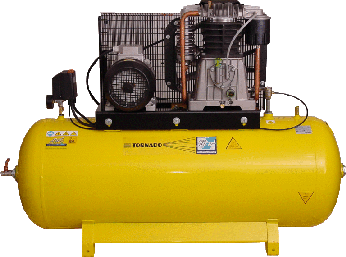

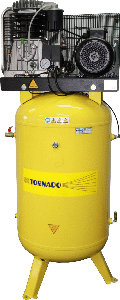

BELT DRIVEN AIR COMPRESSORS "AB" SERIES ( Italy ) "AC" SERIES ( China )
|
|
|
The AB & AC series of air compressors have been designed to be durable, low maintenance and trouble free, incorporating modern design and materials. Built by FIAC for the Australian market.
|
|
|
 |
|
|
|
|
KEY FEATURES
|
|
|
|
|
|
Belt Driven Low Noise Level Low Pump Rpm Synthetic Oil / Better Lubrication Std Cooling Manifold ( all Models ) Pressure Switch with reset Powder Coated Tank
|
|
|
|
|
Twin Cylinder 12 Month Limited Warranty Oil Level View Glass Air Cooled Supplied with Air Regulator Built in Thermal Cut Out
|
|
|
|
|
|
|
|
|
|
|
Model
|
Input Power
|
Motor Size Kw / Hp
|
Tank Capacity
|
Swept Volume L/m / Cfm
|
Free Air Delivery L/m / Cfm
|
Maximum Operating Pressure
|
Number Of Cylinders
|
Weight
|
|
AB50245
|
240 Volt 50Hz
|
1.50 Kw 2.0 Hp
|
50 Ltr
|
197.6 L/m 8.8 Cfm
|
102.35 L/m 3.61 Cfm
|
10 Bar 145 Psi
|
2
|
57 kg
|
|
AB50335
|
240 Volt 50Hz
|
2.25 Kw 3.0 Hp
|
50 Ltr
|
311.4 L/m 10.8 Cfm
|
206.1 L/m 7.28 Cfm
|
10 Bar 145 Psi
|
2
|
59 kg
|
|
AC50360
|
240 Volt 50Hz
|
2.25 Kw 3.0 Hp
|
50 Ltr
|
364.0 L/m 12.86 Cfm
|
266.0 L/m 9.39 Cfm
|
10 Bar 145 Psi
|
2
|
58 kg
|
|
|
|
|

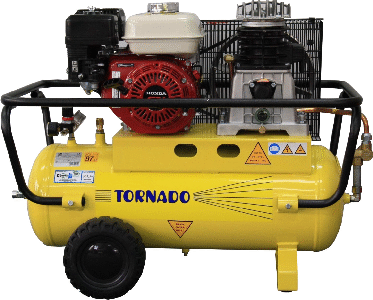

PETROL DRIVEN INDUSTRIAL AIR COMPRESSORS "AC" SERIES
|
|
|
The AC36H5.5 all terrain petrol driven Air Compressor is ideal for building sites. The wheel barrow style design and low center of gravity makes maneuvering easy. Designed to be durable, low maintenance and trouble free, incorporating modern design and materials. Built by FIAC for the Australian market.
|
|
|
 |
|
|
KEY FEATURES
|
|
|
|
Petrol Driven Genuine Honda Motor GX160 Synthetic Oil / Better Lubrication Std Cooling Manifold Pressure Switch with reset Powder Coated Tank 91 dBa Noise Level
|
|
|
|
Twin Cylinder 12 Month Limited Warranty Oil Level View Glass Air Cooled Supplied with Air Regulator Built in Thermal Cut Out
|
|
|
|
|
|
|
|
|
Model
|
Motor Model
|
Motor Size Hp
|
Tank Capacity
|
Free Air Delivery L/m / Cfm
|
Maximum Operating Pressure
|
Number Of Cylinders
|
Weight
|
|
AC36H5.5
|
GX160
|
5.5 Hp
|
36 Ltr
|
254.88 L/m 9.0 Cfm
|
10 Bar 145 Psi
|
2
|
144 kg
|
|
|
|
|
|
|
|
|
Product specifications subject to change without notice
|
|
|
|
